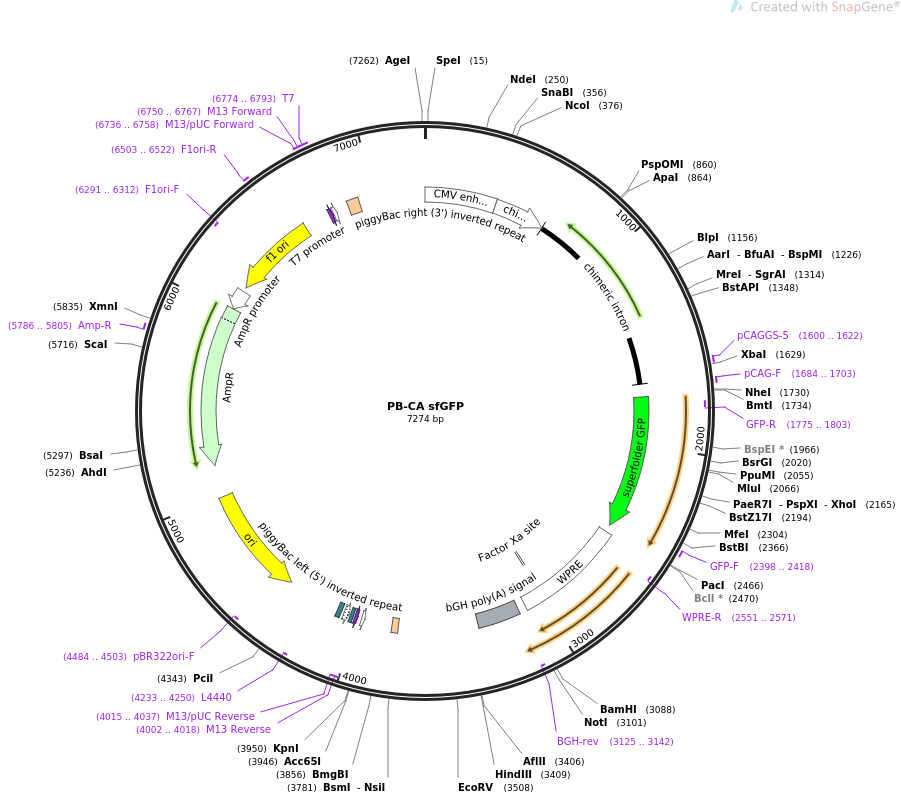

PB-CA sfGFP

LOCUS       PB-CA sfGFP                7274 bp ds-DNA     circular SYN 13-MAY-2021
DEFINITION  PB-CA sfGFP piggyBac transposon.
ACCESSION   .
VERSION     .
KEYWORDS    PB-CA sfGFP
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7274)
  AUTHORS   Nam HS, Capecchi MR
  TITLE     piggyBac transposon plasmids
  JOURNAL   Unpublished
REFERENCE   2  (bases 1 to 7274)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 13, 2021 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7274
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        1..380
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        382..659
                     /label=chicken beta-actin promoter
     intron          660..1676
                     /label=chimeric intron
                     /note="chimera between introns from chicken beta-actin and
                     rabbit beta-globin"
     primer_bind     1600..1622
                     /label=pCAGGS-5
                     /note="Chimeric intron in CAG promoter, forward primer"
     primer_bind     1684..1703
                     /label=pCAG-F
                     /note="Rabbit beta-globin intron, for pCAG plasmids,
                     forward primer"
     CDS             1745..2458
                     /codon_start=1
                     /product="GFP variant that folds robustly even when fused
                     to poorly folded proteins (Pedelacq et al., 2006)"
                     /label=superfolder GFP
                     /translation="MSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTLK
                     FICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKRHDFFKSAMPEGYVQERTISFKDDG
                     TYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNSHNVYITADKQKNGIKA
                     NFKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSVLSKDPNEKRDHMVLLE
                     FVTAAGITHGMDELYK"
     primer_bind     complement(1775..1803)
                     /label=GFP-R
                     /note="GFP, reverse primer. Does NOT anneal to EGFP"
     primer_bind     2398..2418
                     /label=GFP-F
                     /note="GFP, forward primer. Does NOT anneal to EGFP"
     misc_feature    2498..3086
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     primer_bind     complement(2551..2571)
                     /label=WPRE-R
                     /note="WPRE, reverse primer"
     CDS             complement(2969..2980)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     primer_bind     complement(3125..3142)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    3131..3355
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     repeat_region   3780..3814
                     /label=piggyBac left (5') inverted repeat
                     /note="piggyBac transposon-specific inverted terminal
                     repeat sequence (ITR)"
     promoter        complement(3963..3981)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     primer_bind     complement(4002..4018)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4002..4018)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(4015..4037)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    4026..4042
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4050..4080)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4095..4116
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4233..4250)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4404..4992)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4484..4503)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5163..6023)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5786..5805
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(6024..6128)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(6154..6609)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(6291..6312)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     6503..6522
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     6736..6758
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     6750..6767
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     6751..6767
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     6774..6793
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        6774..6792
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     repeat_region   6859..6921
                     /label=piggyBac right (3') inverted repeat
                     /note="piggyBac transposon-specific inverted terminal
                     repeat sequence (ITR)"
ORIGIN
        1 gacattgatt attgactagt tattaatagt aatcaattac ggggtcatta gttcatagcc
       61 catatatgga gttccgcgtt acataactta cggtaaatgg cccgcctggc tgaccgccca
      121 acgacccccg cccattgacg tcaataatga cgtatgttcc catagtaacg ccaataggga
      181 ctttccattg acgtcaatgg gtggagtatt tacggtaaac tgcccacttg gcagtacatc
      241 aagtgtatca tatgccaagt acgcccccta ttgacgtcaa tgacggtaaa tggcccgcct
      301 ggcattatgc ccagtacatg accttatggg actttcctac ttggcagtac atctacgtat
      361 tagtcatcgc tattaccatg gtcgaggtga gccccacgtt ctgcttcact ctccccatct
      421 cccccccctc cccaccccca attttgtatt tatttatttt ttaattattt tgtgcagcga
      481 tgggggcggg gggggggggg gggcgcgcgc cggggggggg gggggggggs ggggggsggg
      541 gsggggsgag gcggagaggt gcggcggcag ccaatcagag cggcgcgctc cgaaagtttc
      601 cttttatggc gaggcggcgg cggcggcggc cctataaaaa gcgaagcgcg cggcgggcgg
      661 gagtcgctgc gcgctgcctt cgccccgtgc cccgctccgc cgccgcctcg cgccgcccgc
      721 cccggctctg actgaccgcg ttactcccac aggtgagcgg gcgggacggc ccttctcctc
      781 cgggctgtaa ttagcgcttg gtttaatgac ggcttgtttc ttttctgtgg ctgcgtgaaa
      841 gccttgaggg gctccgggag ggccctttgt gcggggggag cggctcgggg ggtgcgtgcg
      901 tgtgtgtgtg cgtggggagc gccgcgtgcg gctccgcgct gcccggcggc tgtgagcgct
      961 gcgggcgcgg cgcggggctt tgtgcgctcc gcagtgtgcg cgaggggagc gcggccgggg
     1021 gcggtgcccc gcggtgcggg gggggctgcg aggggaacaa aggctgcgtg cggggtgtgt
     1081 gcgtgggggg gtgagcaggg ggtgtgggcg cgtcggtcgg gctgcaaccc cccctgcacc
     1141 cccctccccg agttgctgag cacggcccgg cttcgggtgc ggggctccgt acggggcgtg
     1201 gcgcggggct cgccgtgccg ggcggggggt ggcggcaggt gggggtgccg ggcggggcgg
     1261 ggccgcctcg ggccggggrg ggctcggggg aggggcgcgg cggcccccgg agcgccggcg
     1321 gctgtcgagg cgcggcgagc cgcagccatt gccttttatg gtaatcgtgc gagagggcgc
     1381 agggacttcc tttgtcccaa atctgtgcgg agccgaaatc tgggaggcgc cgccgcaccc
     1441 cctctagcgg gcgcggggcg aagcggtgcg gcgccggcag gaaggaaatg ggcggggagg
     1501 gccttcgtgc gtcgccgcgc cgccgtcccc ttctccctct ccagcctcgg ggctgtccgc
     1561 ggggggacgg ctgccttcgg gggggacggg gcagggcggg gttcggcttc tggcgtgtga
     1621 ccggcggctc tagagcctct gctaaccatg ttcatgcctt cttctttttc ctacagctcc
     1681 tgggcaacgt gctggttatt gtgctgtctc atcattttgg caaagaattg ctagcgccgc
     1741 caccatgagc aaaggagaag aacttttcac tggagttgtc ccaattcttg ttgaattaga
     1801 tggtgatgtt aatgggcaca aattttctgt ccgtggagag ggtgaaggtg atgctacaaa
     1861 cggaaaactc acccttaaat ttatttgcac tactggaaaa ctacctgttc cgtggccaac
     1921 acttgtcact actctgacct atggtgttca atgcttttcc cgttatccgg atcacatgaa
     1981 acggcatgac tttttcaaga gtgccatgcc cgaaggttat gtacaggaac gcactatatc
     2041 tttcaaagat gacgggacct acaagacgcg tgctgaagtc aagtttgaag gtgataccct
     2101 tgttaatcgt atcgagttaa agggtattga ttttaaagaa gatggaaaca ttcttggaca
     2161 caaactcgag tacaacttta actcacacaa tgtatacatc acggcagaca aacaaaagaa
     2221 tggaatcaaa gctaacttca aaattcgcca caacgttgaa gatggttccg ttcaactagc
     2281 agaccattat caacaaaata ctccaattgg cgatggccct gtccttttac cagacaacca
     2341 ttacctgtcg acacaatctg tcctttcgaa agatcccaac gaaaagcgtg accacatggt
     2401 ccttcttgag tttgtaactg ctgctgggat tacacatggc atggatgagc tctacaaatg
     2461 attaattaat gatcatacag tgctctgagt acgctataat caacctctgg attacaaaat
     2521 ttgtgaaaga ttgactggta ttcttaacta tgttgctcct tttacgctat gtggatacgc
     2581 tgctttaatg cctttgtatc atgctattgc ttcccgtatg gctttcattt tctcctcctt
     2641 gtataaatcc tggttgctgt ctctttatga ggagttgtgg cccgttgtca ggcaacgtgg
     2701 cgtggtgtgc actgtgtttg ctgacgcaac ccccactggt tggggcattg ccaccacctg
     2761 tcagctcctt tccgggactt tcgctttccc cctccctatt gccacggcgg aactcatcgc
     2821 cgcctgcctt gcccgctgct ggacaggggc tcggctgttg ggcactgaca attccgtggt
     2881 gttgtcgggg aaatcatcgt cctttccttg gctgctcgcc tgtgttgcca cctggattct
     2941 gcgcgggacg tccttctgct acgtcccttc ggccctcaat ccagcggacc ttccttcccg
     3001 cggcctgctg ccggctctgc ggcctcttcc gcgtcttcgc cttcgccctc agacgagtcg
     3061 gatctccctt tgggccgcct ccccgcagga tccactagag cggccgccta gagctcgcta
     3121 tcagcctcga ctgtgccttc tagttgccag ccatctgttg tttgcccctc ccccgtgcct
     3181 tccttgaccc tggaaggtgc cactcccact gtcctttcct aataaaatga ggaaattgca
     3241 tcgcattgtc tgagtaggtg tcattctatt ctggggggtg gggtggggca ggacagcaag
     3301 ggggaggatt gggaagacaa tagcaggcat gctggggatg cggtgggctc tatggcttct
     3361 gaggcggaaa gaaccagctg gggctcgact agagcttgcg gaacccttaa gcttctagcc
     3421 aacaagctcg tcatcgcttt gcagaagagc agagaggata tgctcatcgt ctaaagaact
     3481 acccatttta ttatatatta gtcacgatat ctataacaag aaaatatata tataataagt
     3541 tatcacgtaa gtagaacatg aaataacaat ataattatcg tatgagttaa atcttaaaag
     3601 tcacgtaaaa gataatcatg cgtcattttg actcacgcgg tcgttatagt tcaaaatcag
     3661 tgacacttac cgcattgaca agcacgcctc acgggagctc caagcggcga ctgagatgtc
     3721 ctaaatgcac agcgacggat tcgcgctatt tagaaagaga gagcaatatt tcaagaatgc
     3781 atgcgtcaat tttacgcaga ctatctttct agggttaaaa aagatttgcg ctttactcga
     3841 cctaaacttt aaacacgtca tagaatcttc gtttgacaaa aaccacattg tggccaagct
     3901 gtgtgacgcg acgcgcgcta aagaatggca aaccaagtcg cgcgaggtac cagcttttgt
     3961 tccctttagt gagggttaat ttcgagcttg gcgtaatcat ggtcatagct gtttcctgtg
     4021 tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa
     4081 gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct
     4141 ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga
     4201 ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc
     4261 gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa
     4321 tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt
     4381 aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa
     4441 aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt
     4501 ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg
     4561 tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc
     4621 agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc
     4681 gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta
     4741 tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct
     4801 acagagttct tgaagtggtg gcctaactac ggctacacta gaagaacagt atttggtatc
     4861 tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa
     4921 caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac gcgcagaaaa
     4981 aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa
     5041 aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt
     5101 ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac
     5161 agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc
     5221 atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt accatctggc
     5281 cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata
     5341 aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc
     5401 cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc
     5461 aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca
     5521 ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa
     5581 gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca
     5641 ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt
     5701 tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt
     5761 tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac tttaaaagtg
     5821 ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga
     5881 tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc
     5941 agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg
     6001 acacggaaat gttgaatact catactcttc ctttttcaat attattgaag catttatcag
     6061 ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg
     6121 gttccgcgca catttccccg aaaagtgcca cctaaattgt aagcgttaat attttgttaa
     6181 aattcgcgtt aaatttttgt taaatcagct cattttttaa ccaataggcc gaaatcggca
     6241 aaatccctta taaatcaaaa gaatagaccg agatagggtt gagtgttgtt ccagtttgga
     6301 acaagagtcc actattaaag aacgtggact ccaacgtcaa agggcgaaaa accgtctatc
     6361 agggcgatgg cccactacgt gaaccatcac cctaatcaag ttttttgggg tcgaggtgcc
     6421 gtaaagcact aaatcggaac cctaaaggga gcccccgatt tagagcttga cggggaaagc
     6481 cggcgaacgt ggcgagaaag gaagggaaga aagcgaaagg agcgggcgct agggcgctgg
     6541 caagtgtagc ggtcacgctg cgcgtaacca ccacacccgc cgcgcttaat gcgccgctac
     6601 agggcgcgtc ccattcgcca ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg
     6661 cctcttcgct attacgccag ctggcgaaag ggggatgtgc tgcaaggcga ttaagttggg
     6721 taacgccagg gttttcccag tcacgacgtt gtaaaacgac ggccagtgaa ttgtaatacg
     6781 actcactata gggcgaattg gagctcggta ttcacgacag caggctgaat aataaaaaaa
     6841 ttagaaacta ttatttaacc ctagaaagat aatcatattg tgacgtacgt taaagataat
     6901 catgcgtaaa attgacgcat gtgttttatc ggtctgtata tcgaggttta tttattaatt
     6961 tgaatagata ttaagtttta ttatatttac acttacatac taataataaa ttcaacaaac
     7021 aatttattta tgtttattta tttattaaaa aaaaacaaaa actcaaaatt tcttctataa
     7081 agtaacaaaa cttttaaaca ttctctcttt tacaaaaata aacttatttt gtactttaaa
     7141 aacagtcatg ttgtattata aaataagtaa ttagcttaac ctatacataa tagaaacaaa
     7201 ttatacttat tagtcagtca gaaacaactt tggcacatat caatattatg ctctcgttaa
     7261 taccggtcat ggtc
//
